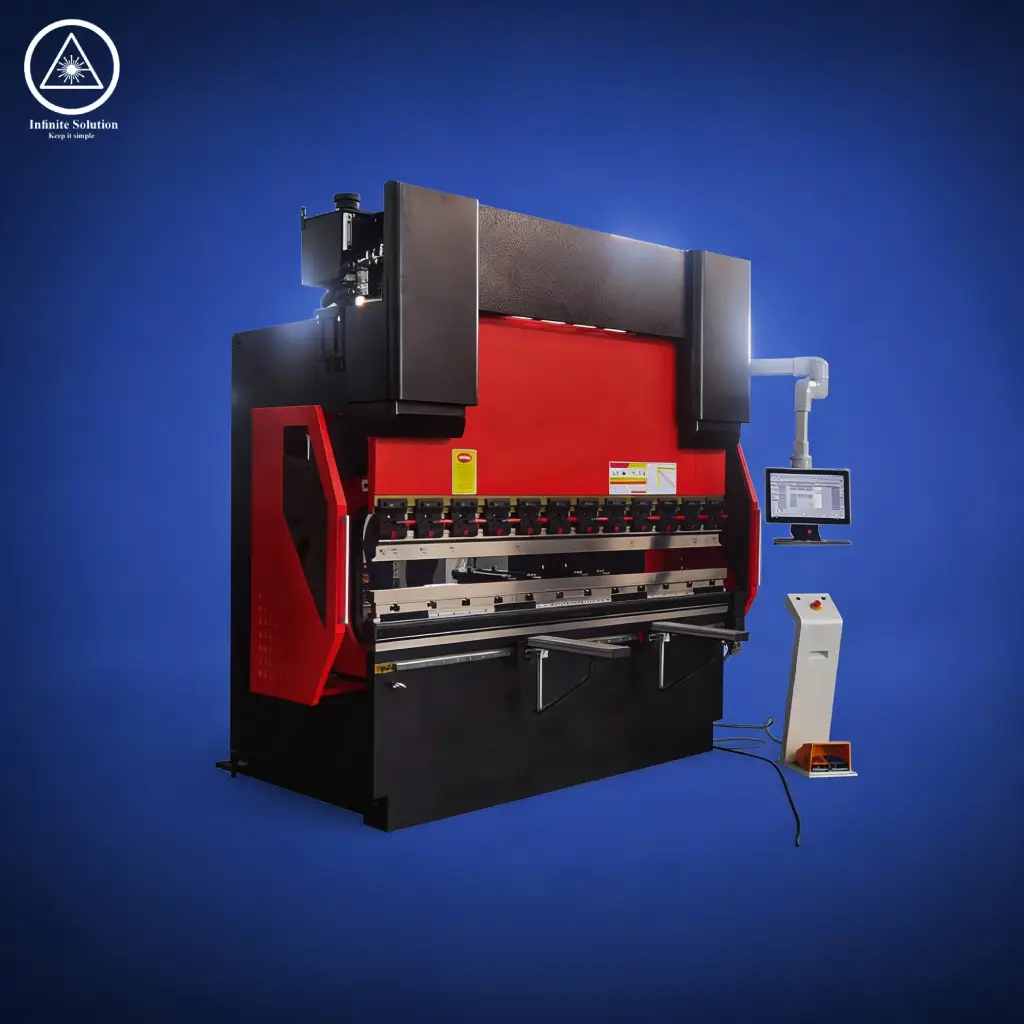

WF67K-M WF67K-M hybrid CNC press brake CNC press brake

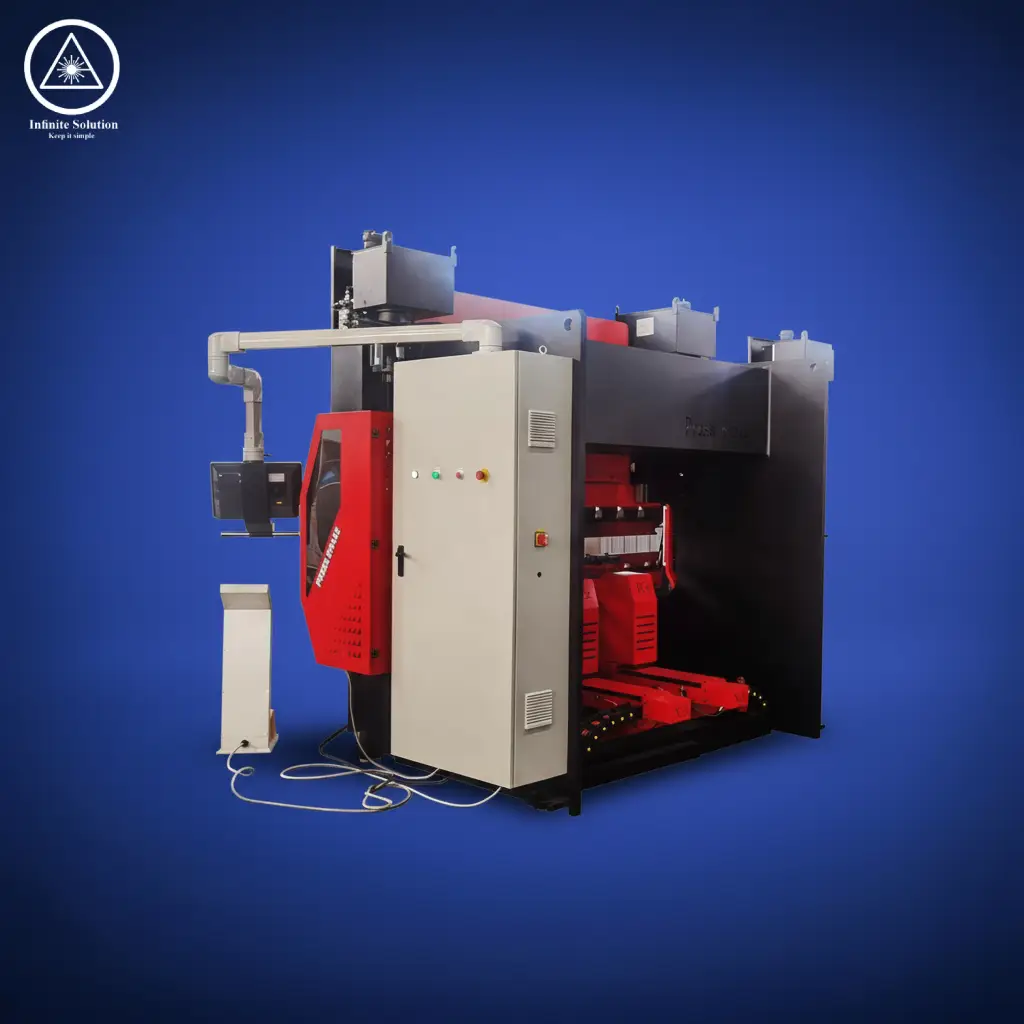

WF67K-M WF67K-M hybrid CNC press brake CNC press brake - Image 2

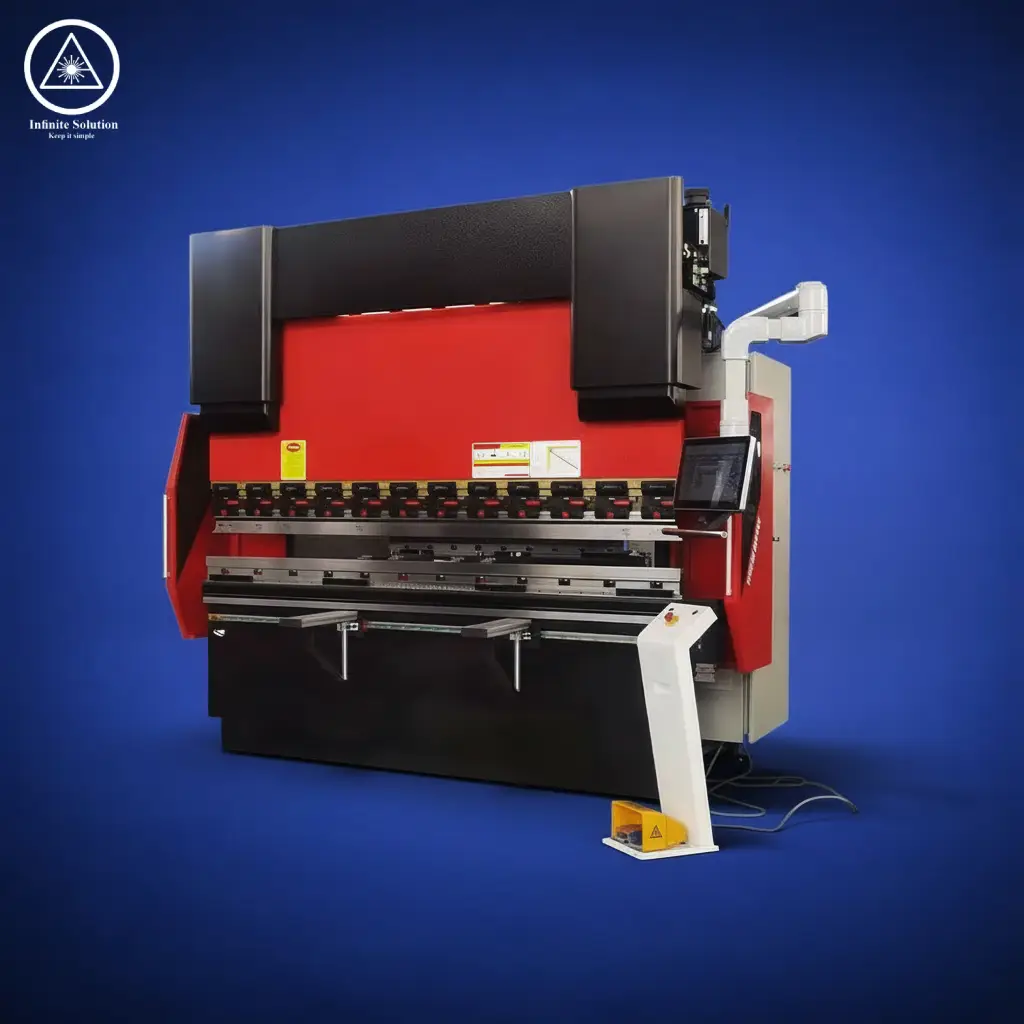

WF67K-M WF67K-M hybrid CNC press brake CNC press brake - Image 3

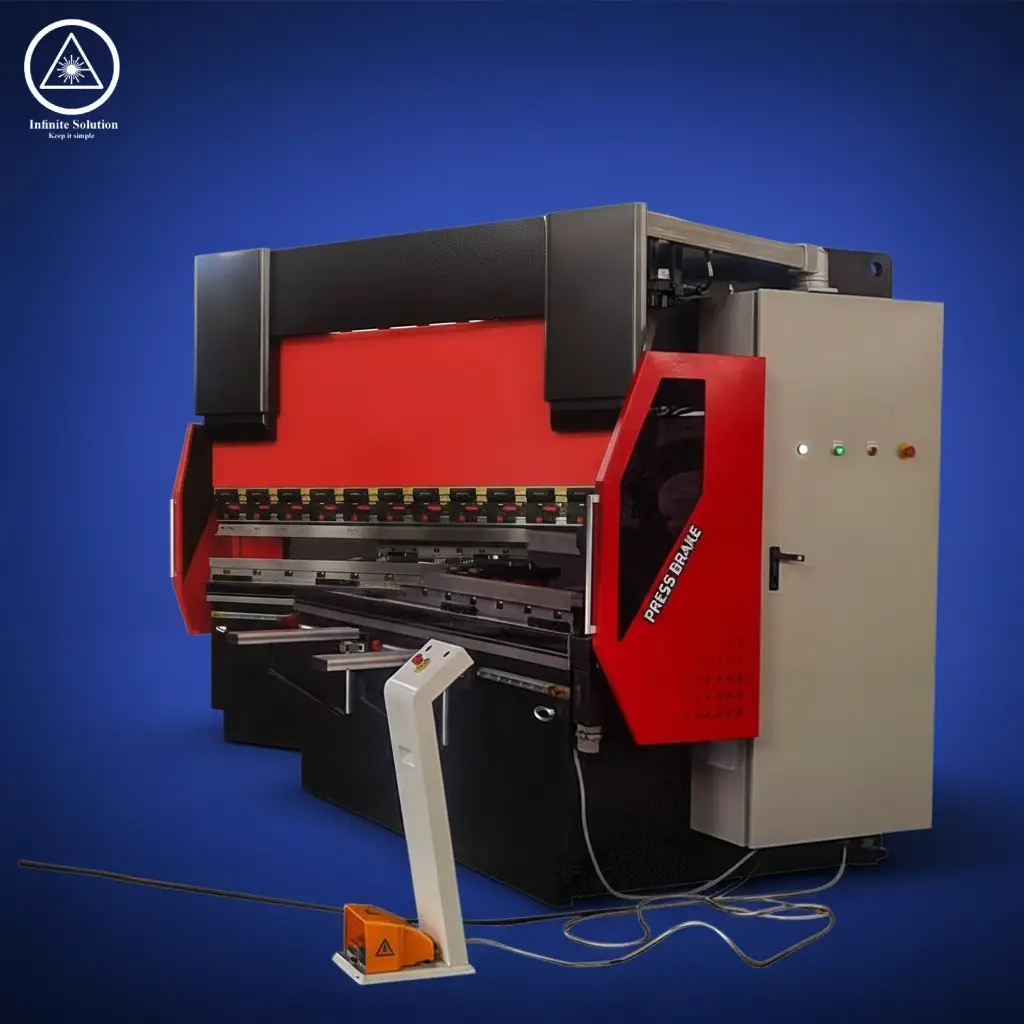

WF67K-M WF67K-M hybrid CNC press brake CNC press brake - Image 4

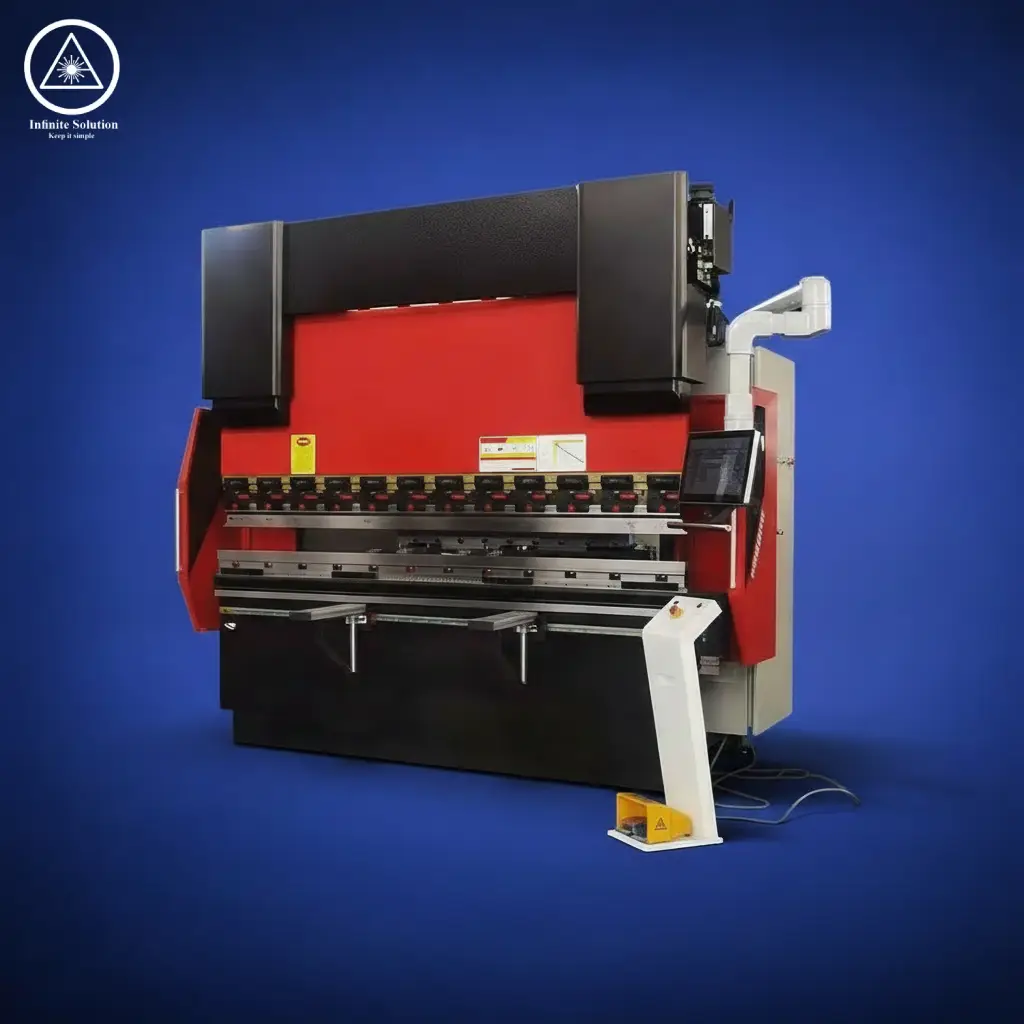

WF67K-M WF67K-M hybrid CNC press brake CNC press brake

The WF67K-M Series Hybrid CNC Press Brake is an advanced bending solution designed to combine high precision, energy efficiency, and intelligent control for modern sheet metal fabrication. Built with a rigid welded steel frame and precision-engineered components, the machine ensures exceptional stability and long-term reliability even under demanding production conditions.

This hybrid press brake utilizes an innovative servo-electric and hydraulic hybrid system that eliminates the need for traditional oil pipes, reducing system complexity and maintenance requirements. Compared to conventional hydraulic press brakes, the WF67K-M series can achieve up to 70% energy savings, making it a highly efficient and environmentally friendly solution for industrial operations.

Description

Model torsion bar series	Nominal Pressure (mm)	Workbench length (mm)	Poles distance (mm )	Throat depth (mm )	Slipper Stroke (mm)	MaxOpen (mm)	Main motor (mm )	Dime nsion (LXWXH)(mm)
30T/1600	300	1600	1250	170	90	195	3	1600×920×1660
30T/205	300	2050	1450	170	90	195	3	2050×920×1660
40T/2200	400	2200	1850	245	100	330	5.5	2260×1200×195
40T/2500	400	2500	2150	245	100	330	5.5	2560×1200×195
50T/2500	500	2500	2150	245	100	330	5.5	2560×1200×195
63T/2500	630	2500	2000	250	120	350	7.5	2560×1350×212
80T/250	800	2500	2000	250	120	350	7.5	2560×1350×212
80T/4000	800	4000	2980	250	120	350	7.5	4060×1350×225
100T/2500	1000	2500	2000	300	130	400	7.5	2560×1465×230
100T/3200	1000	3200	2580	300	130	400	7.5	3260×1465×230
100T/4000	1000	4000	2980	300	130	400	7.5	4060×1465×230
125T/2500	1250	2500	2000	300	130	400	11	2560×1465×235
125T/3200	1250	3200	2580	300	130	400	11	3260×1465×235
160T/4000	1600	4000	2980	340	150	450	11	4060×1620×270
160T/5000	1600	5000	4000	340	150	450	11	5060×1620×285
160T/6000	1600	6000	5000	340	150	450	11	6060×1620×300
200T/3200	2000	3200	2580	340	150	450	11	3260×1620×270
200T/4000	2000	4000	2980	340	150	450	11	4060×1620×285
\| 160T/5000	1600	5000	4000	340	150	450	11	5060×1620×285
160T/6000	1600	6000	5000	340	150	450	11	6060×1620×300
200T/3200	2000	3200	2580	340	150	450	15	3260×1620×270
200T/4000	2000	4000	2980	340	150	450	15	4060×1620×285
200T/5000	2000	5000	4000	340	150	450	15	5060×1620×285
300T/6000	3000	6000	5000	400	200	520	22	6060×2100×340
350T/3200	3500	3200	2580	400	250	570	22	3260×2000×300
350T/4000	3000	4000	2980	400	250	570	22	4060×2000×300
350T/6000	3000	6000	5000	400	250	570	22	6060×2100×340
400T/3200	4000	3200	2580	400	250	580	22	3260×2000×310
400T/4000	4000	4000	2980	400	250	580	22	4060×2100×290
400T/5000	4000	5000	4000	400	250	580	22	5060×2000×330
500T/4000	5000	4000	2980	500	300	640	37	4100×2300×360
500T/5000	5000	5000	4000	500	300	640	37	5100×2450×400
500T/6000	5000	6000	5000	500	300	640	37	6100×2450×420
600T/4000	6000	4000	2980	500	300	660	45	4100×2300×360
600T/5000	6000	5000	4000	500	300	660	45	5100×2450×400
600T/6000	6000	6000	5000	500	300	660	45	6100×2450×420

Additional information

CNC Sheet Bending	WF67K-M hybrid CNC press brake
