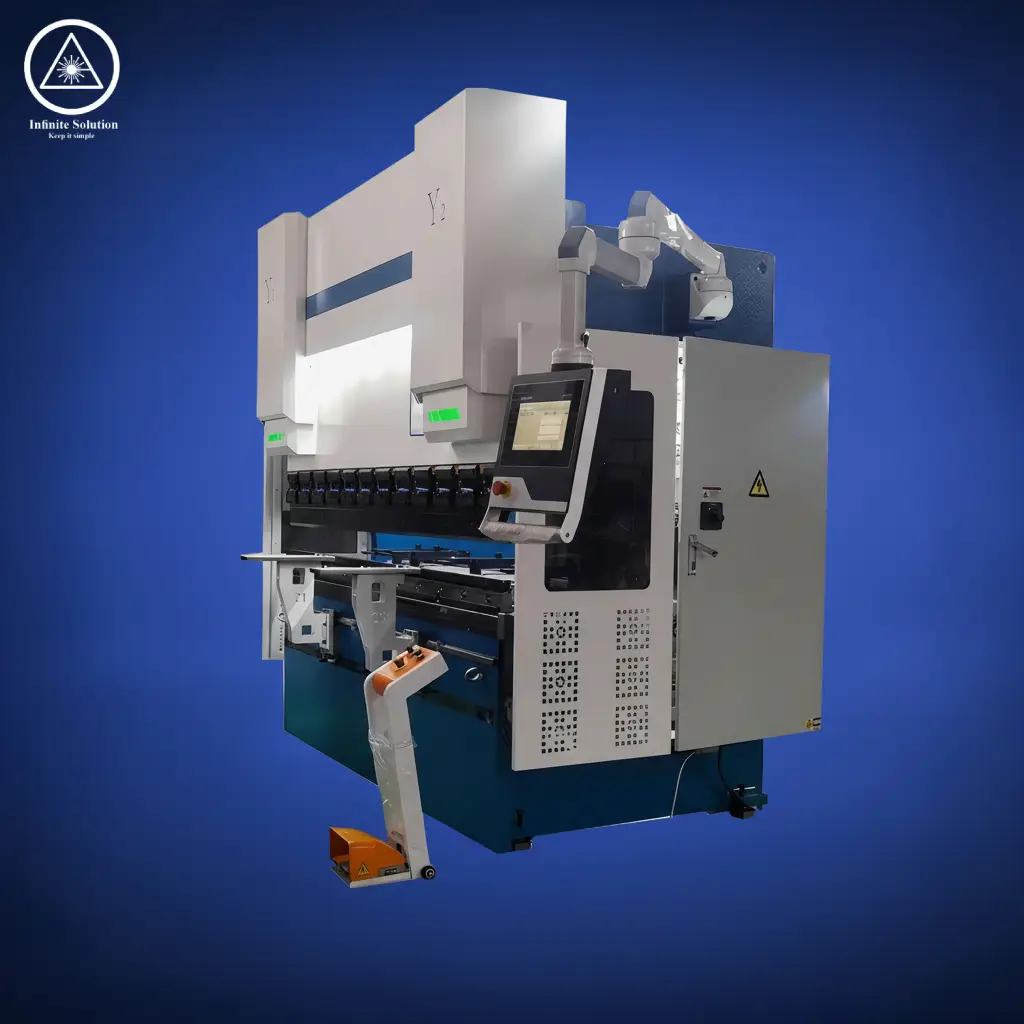

WF67K-C servo CNC press brake

The WF67K-C Series Large CNC Hydraulic Press Brake is designed to deliver high precision, energy efficiency, and reliable performance for modern sheet metal bending operations. Built with a robust welded steel structure and advanced CNC technology, the machine provides excellent rigidity and stability, ensuring consistent bending accuracy even during continuous heavy-duty production.

Equipped with an advanced electro-hydraulic servo system and a one-way servo pump, the WF67K-C series significantly reduces energy consumption by up to 30% compared to conventional hydraulic systems. This innovative system not only lowers power usage but also reduces heat generation, helping extend hydraulic oil life and minimize maintenance requirements.

Description

Model torsion bar series	Nominal Pressure (mm)	Workbench length (mm)	Poles distance (mm )	Throat depth (mm )	Slipper Stroke (mm)	MaxOpen (mm)	Main motor (mm )	Dime nsion (LXWXH)(mm)
30T/1600	300	1600	1250	170	90	195	3	1600×920×1660
30T/205	300	2050	1450	170	90	195	3	2050×920×1660
40T/2200	400	2200	1850	245	100	330	5.5	2260×1200×195
40T/2500	400	2500	2150	245	100	330	5.5	2560×1200×195
50T/2500	500	2500	2150	245	100	330	5.5	2560×1200×195
63T/2500	630	2500	2000	250	120	350	7.5	2560×1350×212
80T/250	800	2500	2000	250	120	350	7.5	2560×1350×212
80T/4000	800	4000	2980	250	120	350	7.5	4060×1350×225
100T/2500	1000	2500	2000	300	130	400	7.5	2560×1465×230
100T/3200	1000	3200	2580	300	130	400	7.5	3260×1465×230
100T/4000	1000	4000	2980	300	130	400	7.5	4060×1465×230
125T/2500	1250	2500	2000	300	130	400	11	2560×1465×235
125T/3200	1250	3200	2580	300	130	400	11	3260×1465×235
160T/4000	1600	4000	2980	340	150	450	11	4060×1620×270
160T/5000	1600	5000	4000	340	150	450	11	5060×1620×285
160T/6000	1600	6000	5000	340	150	450	11	6060×1620×300
200T/3200	2000	3200	2580	340	150	450	11	3260×1620×270
200T/4000	2000	4000	2980	340	150	450	11	4060×1620×285
\| 160T/5000	1600	5000	4000	340	150	450	11	5060×1620×285
160T/6000	1600	6000	5000	340	150	450	11	6060×1620×300
200T/3200	2000	3200	2580	340	150	450	15	3260×1620×270
200T/4000	2000	4000	2980	340	150	450	15	4060×1620×285
200T/5000	2000	5000	4000	340	150	450	15	5060×1620×285
300T/6000	3000	6000	5000	400	200	520	22	6060×2100×340
350T/3200	3500	3200	2580	400	250	570	22	3260×2000×300
350T/4000	3000	4000	2980	400	250	570	22	4060×2000×300
350T/6000	3000	6000	5000	400	250	570	22	6060×2100×340
400T/3200	4000	3200	2580	400	250	580	22	3260×2000×310
400T/4000	4000	4000	2980	400	250	580	22	4060×2100×290
400T/5000	4000	5000	4000	400	250	580	22	5060×2000×330
500T/4000	5000	4000	2980	500	300	640	37	4100×2300×360
500T/5000	5000	5000	4000	500	300	640	37	5100×2450×400
500T/6000	5000	6000	5000	500	300	640	37	6100×2450×420
600T/4000	6000	4000	2980	500	300	660	45	4100×2300×360
600T/5000	6000	5000	4000	500	300	660	45	5100×2450×400
600T/6000	6000	6000	5000	500	300	660	45	6100×2450×420

Additional information

CNC Sheet Bending	WF67K-C servo CNC press brake
