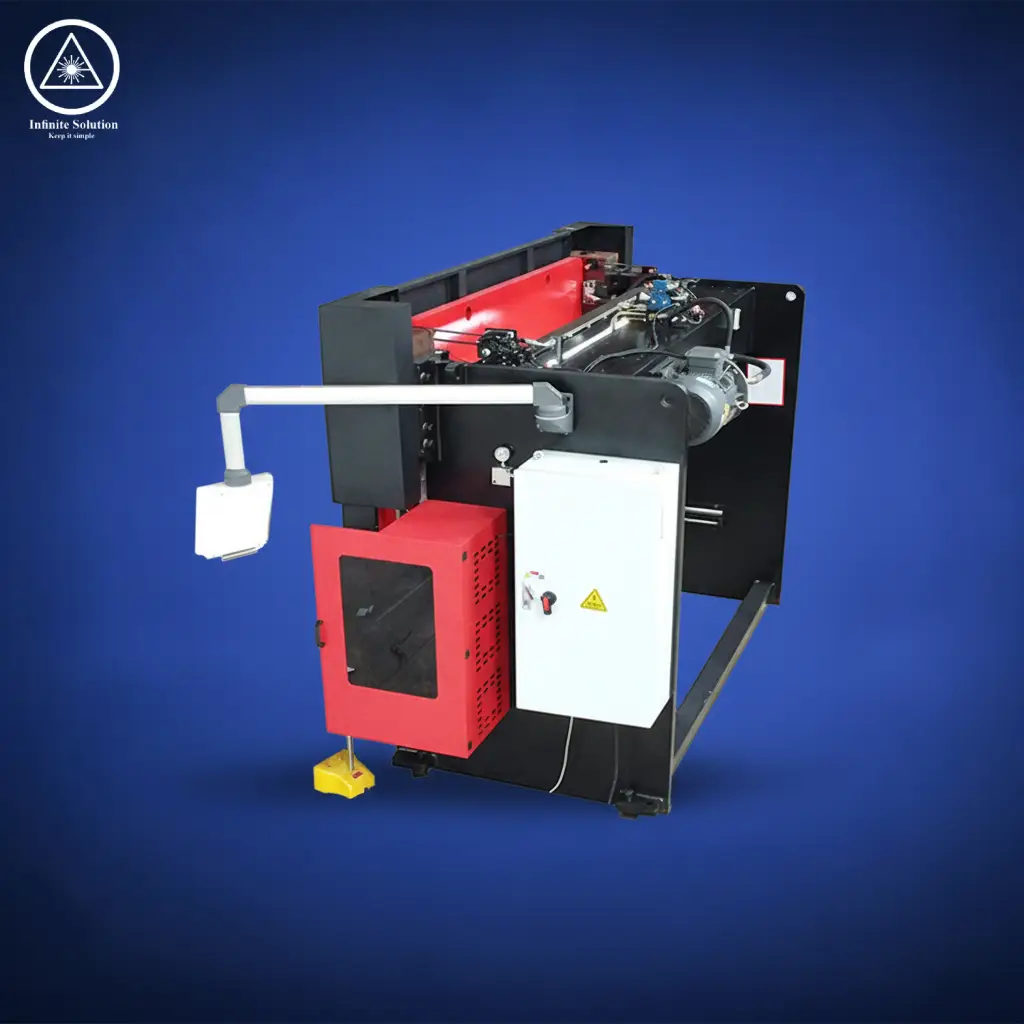

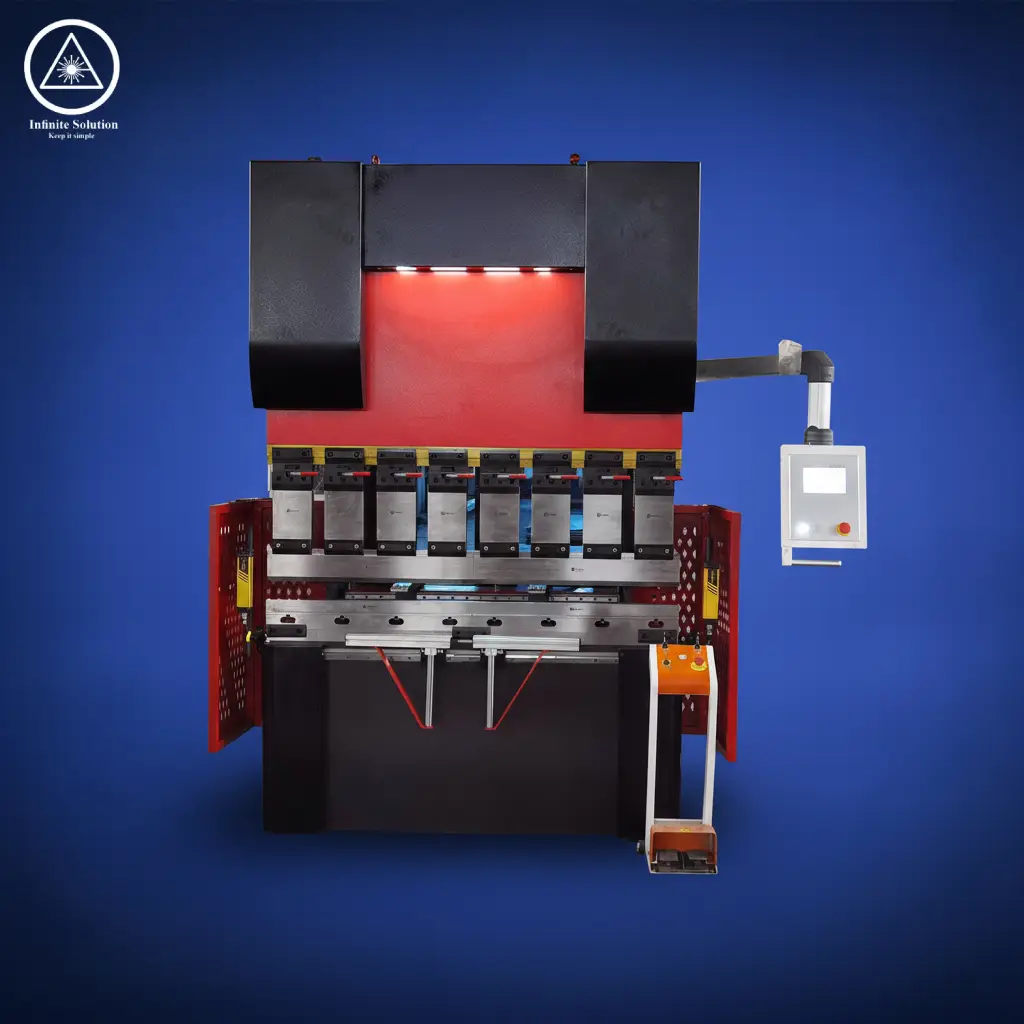

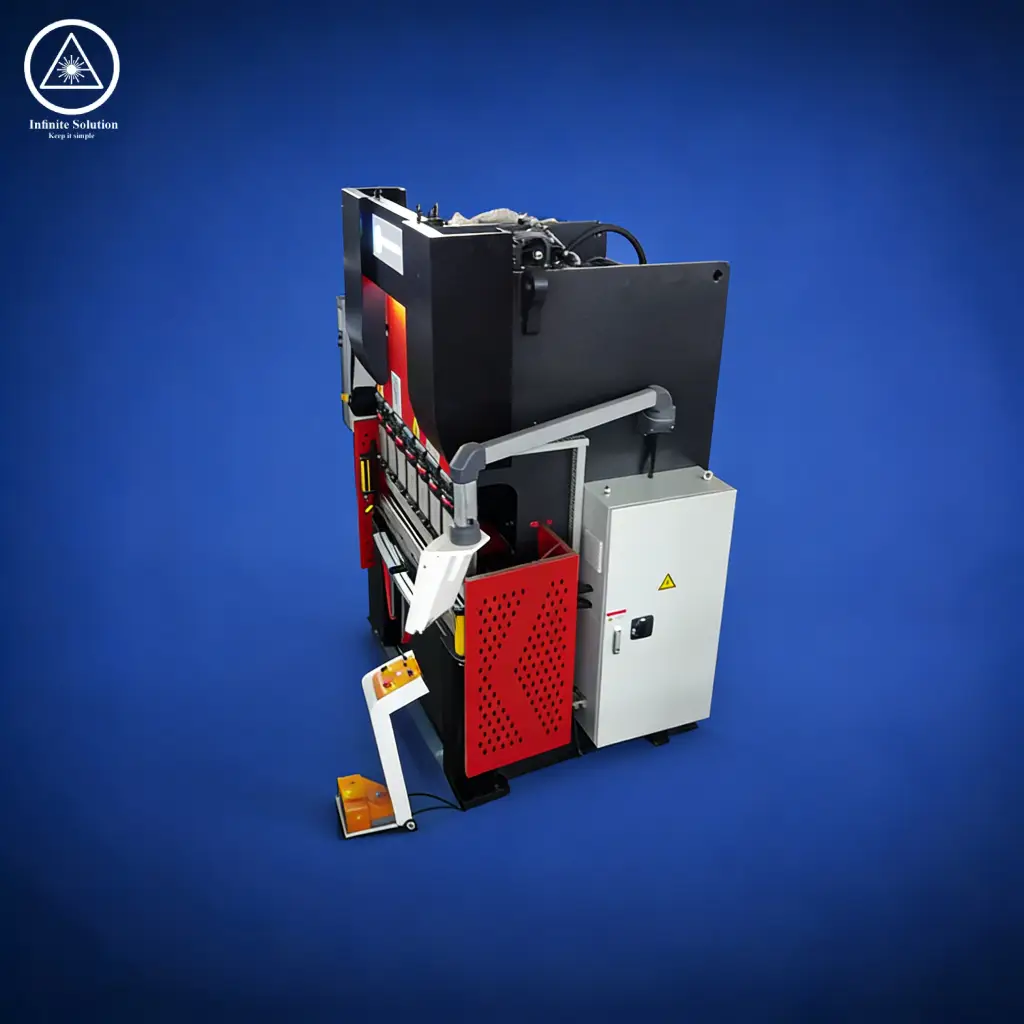

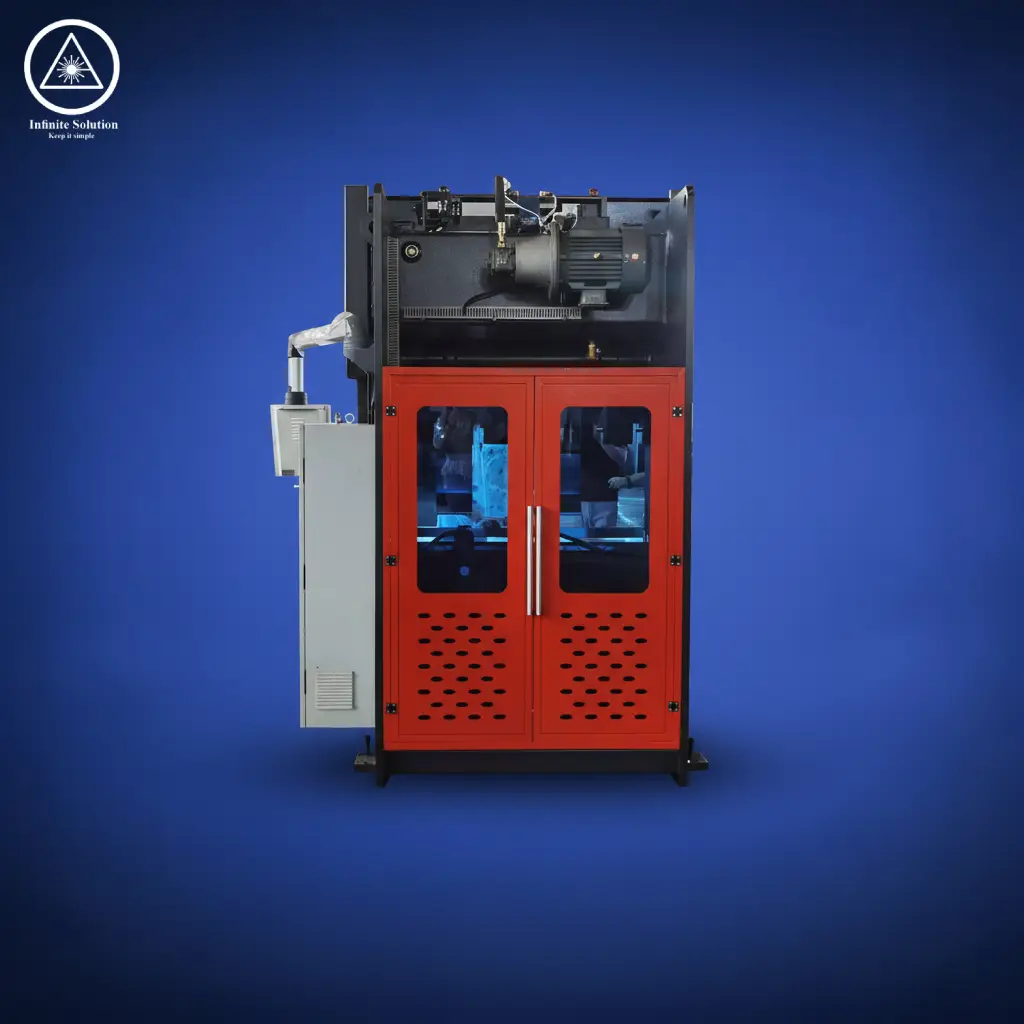

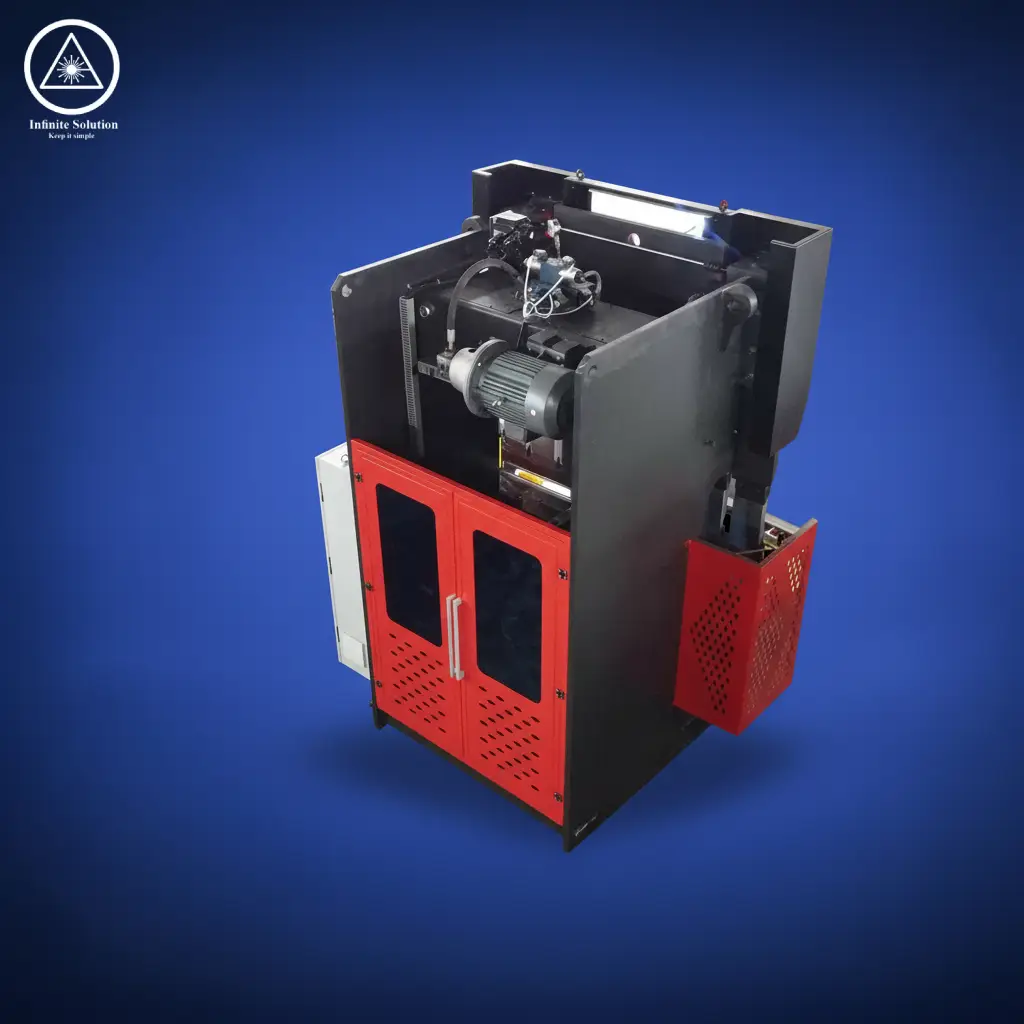

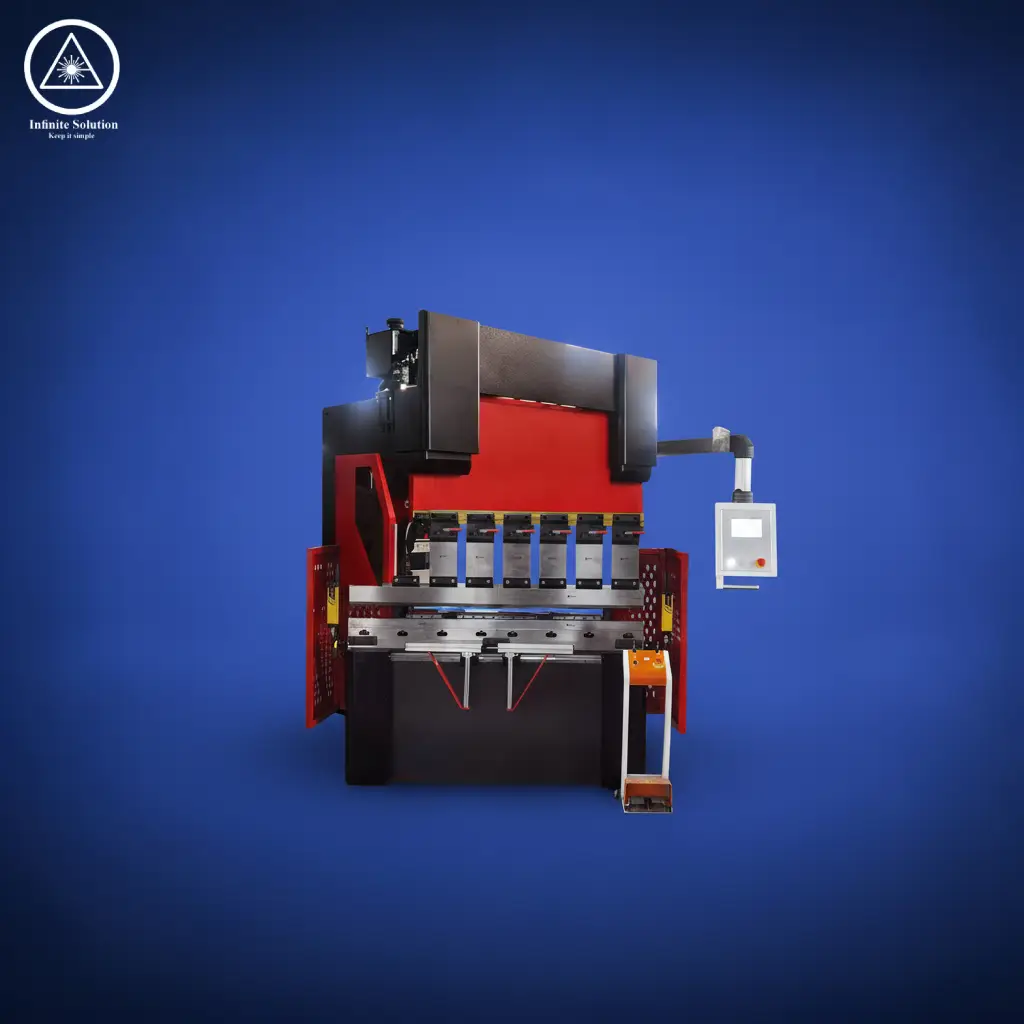

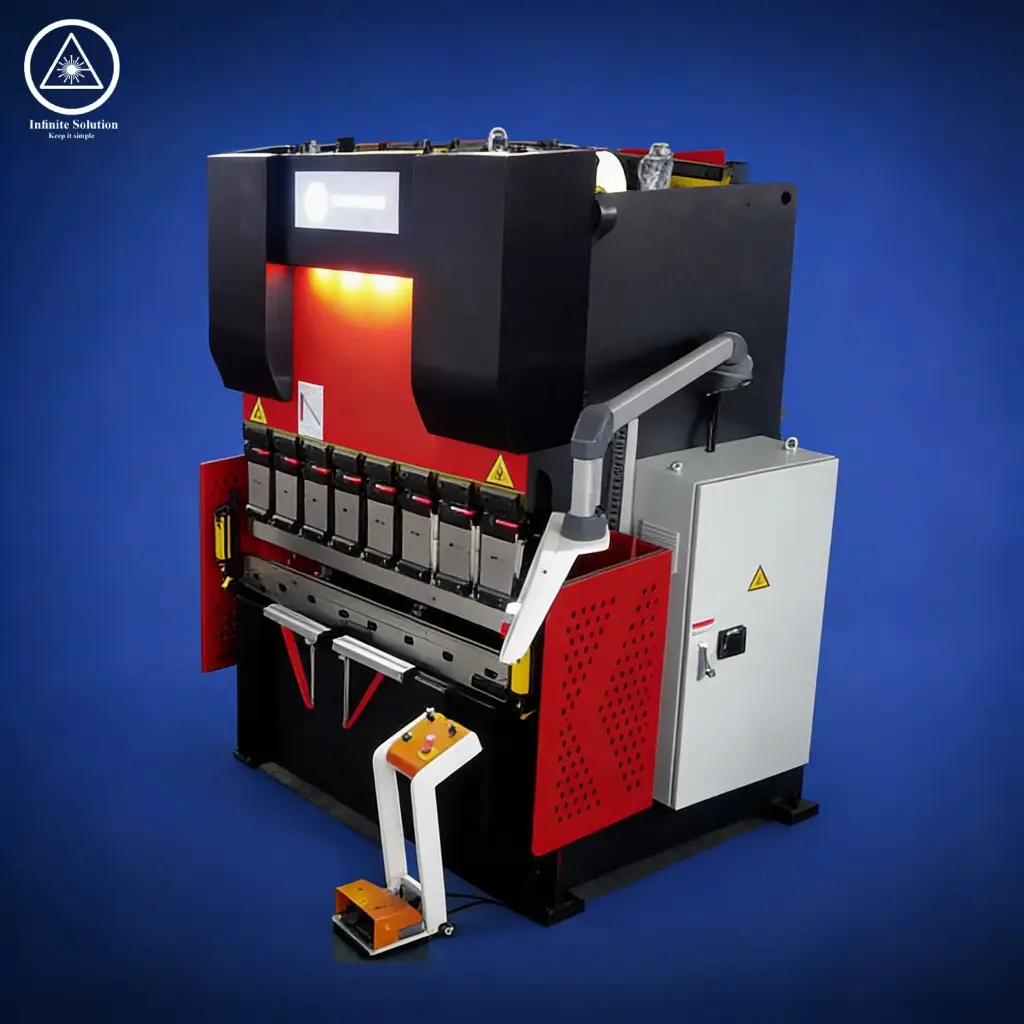

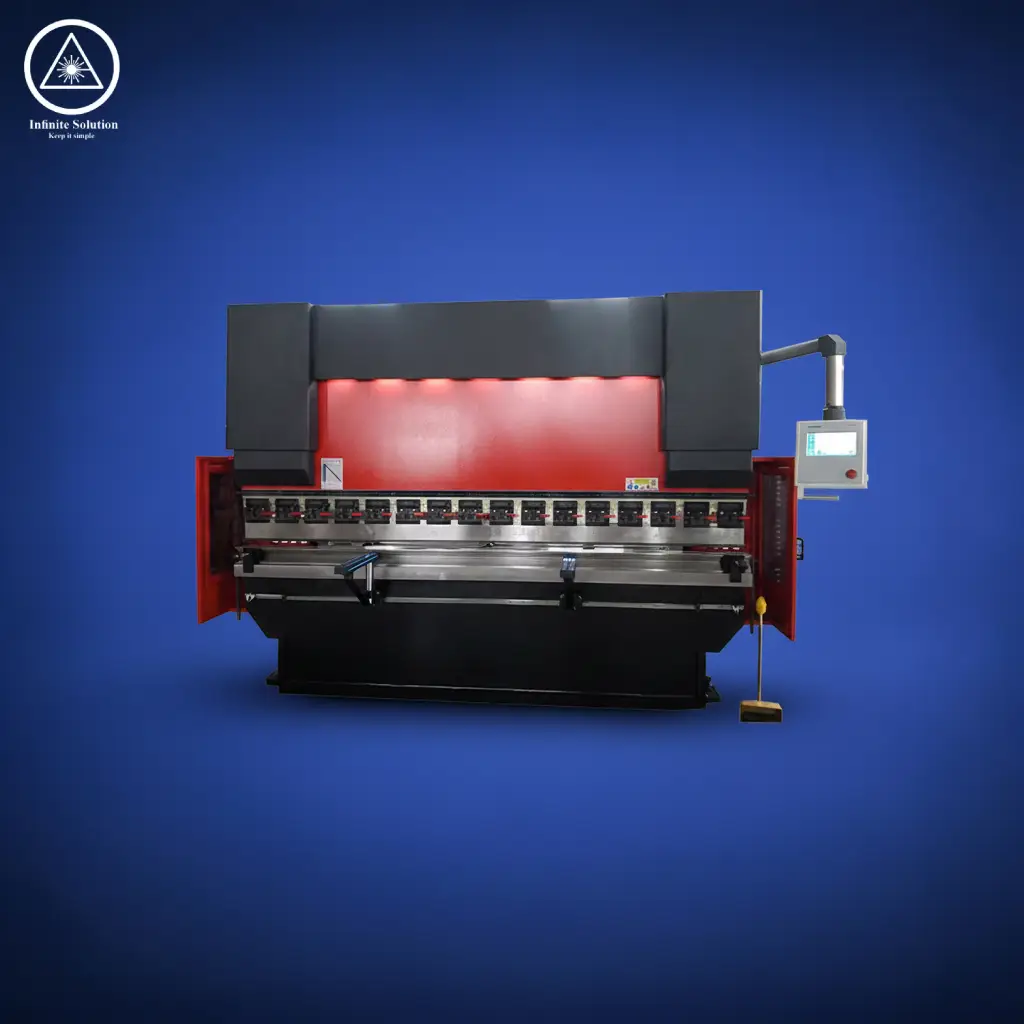

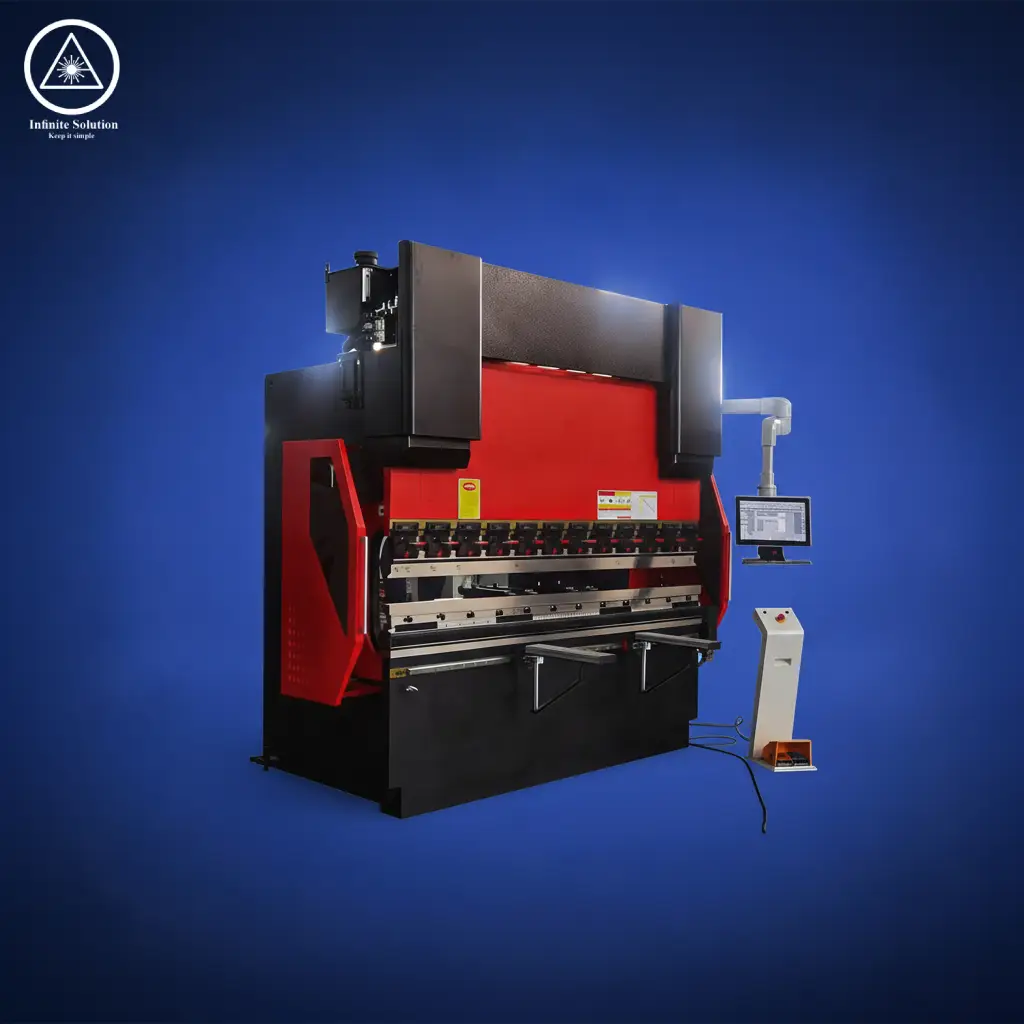

WD67K-CNC torsion bar

The WD67K Series CNC Hydraulic Press Brake is designed to deliver exceptional bending accuracy, reliability, and long-term performance for modern sheet metal fabrication. Built with a robust all-steel welded frame and heat-treated structure, the machine ensures excellent rigidity and stability even under continuous heavy-duty operations.

Equipped with a torsion bar synchronization system and two-axis CNC control (X and Y axes), the press brake provides precise control over ram movement and back gauge positioning, enabling consistent and repeatable bending results. The advanced hydraulic system with integrated hydraulic compensation minimizes deflection during operation, ensuring uniform bending across the entire length of the workpiece.

Description

Model WF67K-series	Nominal Pressure (mm)	Bending Length (mm)	Poles distance (mm)	Throat depth (mm)	Slipper Stroke (mm)	Max Opening Height (mm)	Main motor (mm)	Travel (mm)	Weight (Kg)
40T/1600	400	1600	1260	300	150	420	5.5	500	3800
63T/2500	630	2500	2000	300	150	420	5.5	500	4800
80T/2500	800	2500	2000	400	160	480	7.5	600	5700
100T/3200	1000	3200	2700	400	200	480/520	7.5	600	8500
100T/4000	1250	4000	3600	400	200	480/520	7.5	600	9300
125T/3200	1250	3200	2700	380	200	540	11	600	8700
125T/4000	1600	4000	3600	380	200	540	11	600	10200
160T/3200	1600	3200	2700	400	200	480/520	11	600	9500
160T/4000	2000	4000	3600	400	200	480/520	11	600	12100
200T/3200	2000	3200	2700	400	200	530	15	600	11000
200T/4000	2500	4000	3600	400	200	530	15	600	13500
250T/3200	2500	3200	2700	400	250	530	18.5	600	13000
250T/4000	2500	4000	3600	400	250	530	18.5	600	15500
250T/5000	3000	5000	4300	400	250	580	22	600	18000
300T/3200	3000	3200	2700	400	250	580	22	600	19200
300T/4000	4000	4000	3600	400	250	580	22	600	22500
400T/4000	4000	4000	3600	400	320	580	30	600	25500
400T/5000	5000	5000	4000	400	320	590	30	600	31500
500T/4000	5000	4000	3500	400	320	590	37	600	34500
500T/5000	5000	5000	4000	400	320	590	37	600	43500
500T/6000	6000	6000	5000	400	320	640	37	800	53000
600T/5000	6000	5000	4000	400	320	640	45	800	57000
900T/9000	6000	6000	5000	3500	320	640	45	800	68000
600T/7000	8000	7000	6000	4000	320	800	45	800	79000
800T/6000	8000	6000	5000	5000	320	800	55	800	90000
800T/7000	8000	7000	6000	4000	320	800	55	800	105000
800T/8000	10000	8000	7000	5000	400	800	55	800	120000
1000T/6000	10000	6000	5000	6000	400	800	2x37	800	100000
1000T/8000	10000	8000	6900	5000	400	800	2x37	800	130000
1000T/10000	12000	10000	8000	6000	400	800	2x37	800	150000
1200T/6000	12000	6000	4220	7000	400	800	2×45	1000	130000
1200T/7000	16000	7000	5220	5000	400	1000	2×45	1000	160000
1600T/6000	16000	6000	4900	6900	400	1000	2×55	1000	150000
1600T/7000	16000	7000	5900	8000	400	1000	2×55	1000	170000
1600T/8000	16000	8000	6900	4220	400	1000	2×55	1000	190000
1600T/10000	16000	10000	8000	5220	400	1000	2×55	1000	210000
2000T/8000	20000	8000	6200	4900	400	1000	2×55	1000	260000
2000T/10000	20000	10000	8000	5900	400	1000	2×55	1000	290000
2000T/12000	20000	12000	9050	6900	400	1000	2×55	1000	320000
2000T/14000	20000	14000	11000	8000	400	1000	2×55	1000	320000
3000T/8000	30000	8000	6200	6200	400	1000	2×55	1000	/
3000T/10000	30000	10000	8000	8000	400	1000	2×55	1000	/
3000T/12000	30000	12000	9050	9050	400	1000	2×55	1000	/
3000T/14000	30000	14000	11000	11000	400	1000	2×55	1000	/
